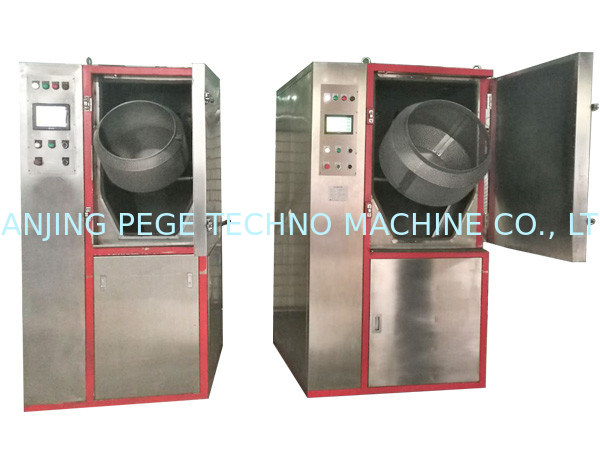

Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T

China Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T supplier
Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T supplier Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T supplier Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T supplier Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T supplier

Large Image :  Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T

Product Details:

Place of Origin: China
Brand Name: Frozen Shot
Certification: CE
Model Number: PG-150T

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: usd35000-usd45000
Packaging Details: Standard wooden box suitable for long distance sea transportation
Delivery Time: 30-35 work days
Payment Terms: L/C, T/T
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Material: SUS 304 Color: Silver With Red Strip
Usage: Deburring Plastic Parts Warranty: 12months
Application: Seperate The Produt Form Edge Capacity: 60Liter
Control: PLC Automatic Advantage: High Production Efficiency And Lower Cost


Top quality supplier of Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T
Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T

Cryogenic deflashing machines are known for its precise quality de-flashed parts with up to 95% performance output without affecting the final part dimension and shape from small O-rings to big molded parts.
These Machines serve the need for Rubber, Metal-Rubber parts, small precision plastic parts and small die-casting parts like Zinc and Managanesium alloy.
rubber deflashing machine, Rubber Deflashing machine supplier in China,Oring Deflasing machine supplier in China,Deflashing machine supplier in China,Liquid Nitrogen Cryogenic Deflashing machine supplier in China

PRODUCT DESCRIPTION

PROCESSING PRINCIPLE
With the decrease of the temperature, rubber/plastic parts enter into hardened, brittle, and crystallized process, its flexibility is gradually lost. It is easily broken by external force when it is under brittle temperature. Flash of the molded products is generally much thinner than finished product itself, it become brittle earlier than product in the low temperature. Cryogenic deflashing machine applies this principle, works in the time range when flash is brittle while products still keeps its flexibility, hit the flashes by high speed projected special plastic media, clear out the brittle burr. The flashes can be easily removed, and the product not be damaged.
Product Feature

Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T

FUNCTIONS of cryogenic trimming machine
Our machine is widely used in removing the flashed of small rubber and plastic parts like O-rings, gaskets and other molded parts.
With the cryogenic processing technology, the flashes are firstly freeze and then shot down the high-speed projection media (Polycarbonate blast). The surface quality of molded rubber and plastic rubber parts can be improved greatly.
Product Specification / Models

APPLICATIONS of cryogenic deflashing machine
A. O rings, irregular rubber parts with different material and sizes.
B. Micro electronic product parts
C. Precision elastomeric parts
D. Precision injection moulding plastic parts
E. R & D part runs
F. Die casting products, like zinc aluminum, magnesium alloy
FEATURES of cryogenic deburring machine
High efficiency: The machine can replace about 60-80 worker to removing the flashes.
High precision: It can remove small and hardened flashes which cannot be removed by handworkers and improve precision of the products.
Low cost: It also has a feature of lower cost comparing with processing the parts by handworkers.
Automatic Deflashing Deburring Tool for Rubber and Plastic Parts Model PG-150T

SPECIFICATIONS
PG-150T
Size:1300mm*1350mm*2250mm
Weight:1500kg
Power supply: AC380V 50HZ 3Ph
Electrical capacity: 9kw
Temperature: -130C--50C
Pressure:0.5-0.7Mpa
Barrel capacity:50L
Wheel speed: 3000rpm-7000rpm
Cooling media: liquid nitrogen
Material: SUS304

Weight 750/850/1000/1500kg
Voltage As your local need,general is 380V, 3ph,
Dimension(l*w*h) 1100*1200*2000mm
Power(w) 6/7/8/9KW
Condition New
Type Rubber Cutting Machine, PLC, Deflashing machine, Vertical, Trimming equipment
Application separate product from edage, Rubber complicated, use a cryogenic deflashing machine for rubber parts, Vacuum pump, Rubber Industry
Capacity 60L/80L/120L/150L
Control automatic control
Max temperature -130℃
Dimensions 1100*1200*2000rpm
Service OEM / ODM
Freeze source Liquid nitrogen
Roller speed 0-25 RPM
Wheel Speed 0-7000/7200rpm
Product name Cryogenic deflashing machine
Usage Cryogenic deflashing machine for deflashing rubber parts
Advantages High production efficiency,High Precision, Lower Cost
After-sales service provided Online support, Field installation, commissioning and training, Video technical support, Field maintenance and repair service
Warranty

1 Year, One Year
